在对车渗透的时候，会检索车载系统的敏感文件。包括传统的密钥、密码、重要文件等。汽车数据库文件是我通常比较关注的一种，有时候车载系统里面会残留有汽车数据库文件，如DBC文件。拿到DBC文件之后，就能构造出CAN消息，控制车辆、伪造消息等。一起测试的同事对汽车用到的专有数据库文件不太熟悉，于是乎就有了这篇文章，汇总了常用的数据库文件与大家分享。

随着汽车电子技术的快速发展，现代汽车中的电子控制单元（ECU）和各种传感器系统已经形成了一个庞大的数据网络。这些系统不断产生、交换和存储大量的诊断、配置和测量数据。在汽车的研发、测试、诊断、维护等各个环节中，数据库文件格式扮演着至关重要的角色。本文将总结一些在汽车领域常用的数据库文件格式及其应用。

数据库文件格式在汽车通信和诊断中广泛应用，用于描述和存储车辆系统的通信协议、诊断信息及配置数据。常见的格式包括 DBC、ODX 和 ARXML等。如有遗漏欢迎补充。

数据格式统计表

格式 用途 内容格式 文件后缀
ARXML 描述AUTOSAR系统架构 系统配置和软件架构 .arxml
DBC 定义CAN总线的信号与消息格式 消息ID、信号名称、编码格式 .dbc
LDF 描述LIN总线的网络配置 LIN 消息、调度表 .ldf
DBF 总线的信号与消息格式 消息、信号 .dbf
FIBEX 描述汽车网络的通信属性 网络拓扑、通信消息、信号 .xml
ODX 存储和描述车辆诊断信息 ECU 诊断数据和服务描述 .odx

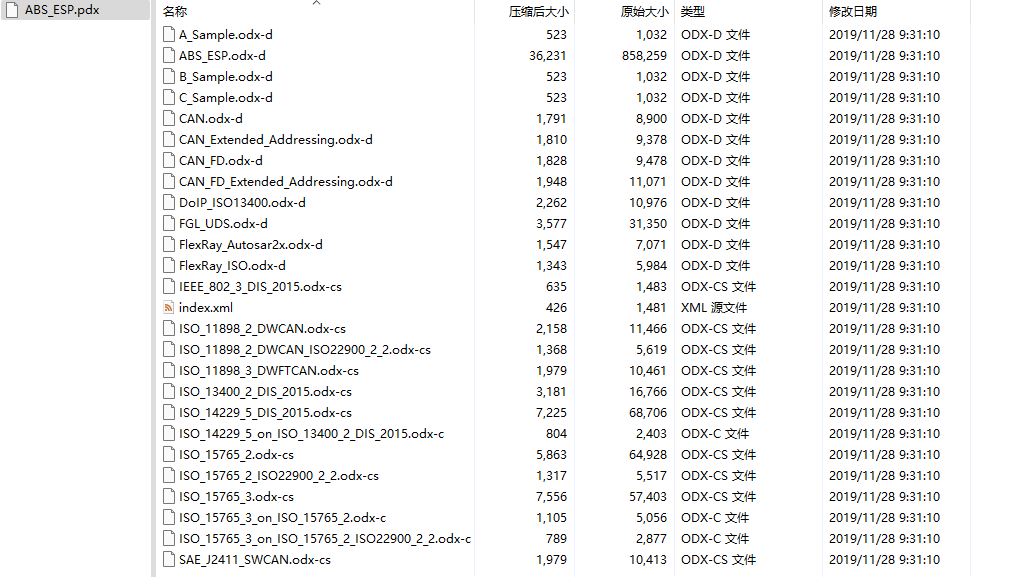

PDX 存储诊断信息,多个 odx zip压缩 诊断数据、测试序列 .pdx
CDD ECU 诊断文件 诊断功能与通信参数 .cdd
A2L ECU 标定文件 ECU参数、测量值、轴变量等 .a2l .xml .dtd
DEXT 数据交换文件 多协议数据交换格式 .dext .armxl
其他 CSV, RTF, XML,CDI

数据库文件简介

汽车架构描述数据库文件

  • ARXML：ARXML 文件是 AUTOSAR（Automotive Open System Architecture）框架中的配置文件，描述了系统架构、软件组件、通信接口等信息。它在现代汽车的电子架构中起着至关重要的作用，尤其是在多ECU系统中，ARXML 文件帮助开发人员高效地管理和配置复杂的汽车电子系统。

标定数据库文件

随着汽车技术的进步，汽车在研发和测试过程中会产生大量的测量数据。这些数据通常需要以高精度和高频率的方式进行记录，并且能够进行高效的存储与分析。

  • A2L：A2L 文件主要用于汽车 ECU 的标定过程，记录了与 ECU 控制相关的各种参数（如测量值、标定值和轴变量等）。A2L 文件通常与 ECU 标定工具配合使用，用于调整发动机控制单元的各种参数，以优化车辆的性能、燃油效率和排放控制。

诊断数据库文件

为了有效地交换和处理车辆电子系统中的大量数据，汽车行业中还使用了专门的数据交换协议和文件格式。汽车的诊断功能是确保车辆正常运行和快速修复故障的关键。诊断文件用于存储和交换诊断相关的数据，如故障码、诊断服务和步骤等。

  • CDD：CDD（CANdelaStudio diagnostic description） 文件用于描述和配置各个 ECU 的诊断功能。它包含了ECU的诊断功能描述、故障码、诊断参数等信息。CDD 文件帮助汽车制造商和服务人员理解每个 ECU 的诊断能力和操作流程。cdd是CANoe/CANalyzer的专用文件。

  • ODX：ODX（Open Diagnostic Data Exchange）格式用于描述车辆的诊断服务信息。它包含了 ECU（电子控制单元）诊断相关的测试服务、故障码、诊断步骤等内容，支持自动化诊断流程，是车辆诊断和维修中不可或缺的工具。

  • PDX：PDX（Product Data eXchange）文件用于存储和交换汽车的诊断信息，特别是在跨供应商和制造商之间共享诊断数据时。PDX 文件通常包含故障码（DTC）、诊断服务、测试步骤等，用于诊断和修复车辆的电子系统问题。

  • DEXT：DEXT（AUTOSAR Diagnostic Extract Template） 文件的主要作用是提供一种标准格式，方便不同的诊断工具、测试设备、车辆控制系统等之间进行数据交换。这可以帮助汽车制造商、供应商、维修商等共享有关车辆状态、故障诊断、测试结果等信息。

网络通信数据库文件

随着汽车电子系统的复杂性增加，车辆内的多种总线通信协议得到了广泛应用。这些通信协议的配置和管理通常依赖于网络描述文件。

  • DBC：DBC 文件是最常用的 CAN（Controller Area Network）通信协议配置文件，用于描述 CAN 总线上各个消息、信号及其编码方式。通过 DBC 文件，开发人员可以清晰地了解 CAN 网络中各个信号的具体含义，如发动机转速、车速等，进而进行数据分析和故障诊断。

  • LDF：LDF（LIN Description File）用于描述 LIN（Local Interconnect Network）总线的通信配置，包括消息的调度、信号的格式等。LIN 总线通常用于低速通信，广泛应用于车窗控制、座椅调节等非关键系统中。

  • FIBEX：FIBEX（Field Bus Exchange）是一种通用的文件格式，用于描述多种通信协议（如 CAN、FlexRay 和 Ethernet）的网络配置。FIBEX 文件通常用于复杂的汽车电子架构，特别是在支持多种总线通信的高端汽车中。
  • DBF: DBF(BUSMASTER Database File) 是BUSMASTER使用的专用数据格式。BUSMASTER 是 BOSCH 开源软件工具,用于模拟、分析和测试数据总线系统，支持CAN和LIN协议。

其他常见文件

  • XML、dtd、JSON等。

数据库文件示例

A2L

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
ASAP2_VERSION 1 41
/begin PROJECT ACCTest_PC
true"Generated by ETAS from Project ACCTest_PC"
true/begin HEADER
truetrue""
truetrueVERSION "000" PROJECT_NO ASD
truetrue/end HEADER
truetrue/begin MODULE ACCTest_PC
truetrue"Generated by ETAS ASCET7 from Project: ACCTest_PC"
truetrue  /begin A2ML
truetrue      block "IF_DATA" taggedunion if_data {
truetrue      "E_TARGET" taggedstruct {
truetrue       (block "SOURCE" struct {
truetrue          char[100];
truetrue          int;
truetrue          long;
truetrue          taggedstruct {
truetrue             "QP_BLOB" uint;
truetrue          };
truetrue       }
truetrue       )*;
truetrue       block "TP_BLOB" struct {
truetrue          ulong;
truetrue          int;
truetrue          int;
truetrue          long;
truetrue          long;
truetrue       };
truetrue       "KP_BLOB" struct {
truetrue          ulong;
truetrue          ulong;
truetrue          uint;
truetrue          struct {
truetrue             long;
truetrue             uint;
truetrue          }
truetrue          [64];
truetrue       };
truetrue       "DP_BLOB" struct {
truetrue          ulong;
truetrue          ulong;
truetrue          uint;
truetrue          struct {
truetrue             long;
truetrue             uint;
truetrue          }
truetrue          [64];
truetrue       };
truetrue      };
truetrue  };
truetrue  /end A2ML
truetrue/begin IF_DATA E_TARGET
truetrue    /begin SOURCE "Task0"
truetrue        /* type   */ 3
truetrue        /* period */ 10
truetrue        QP_BLOB 1
truetrue    /end SOURCE
truetrue    /begin TP_BLOB
truetrue         /* programm id */ 881740918
truetrue         /* target id   */ 7
truetrue         /*             */ 0 2 0
truetrue    /end TP_BLOB
truetrue/end IF_DATA
truetrue/begin MOD_PAR
truetrue    ""
truetrue    VERSION "000"
truetrue    ADDR_EPK 0x0
truetrue    EPK ""
truetrue    SUPPLIER "ETAS GmbH"
truetrue    CUSTOMER "xxx"
truetrue    CUSTOMER_NO "000"
truetrue    USER "xxx"
truetrue    PHONE_NO "000"
truetrue    ECU "PC"
truetrue    CPU_TYPE "PCx86"
truetrue    NO_OF_INTERFACES 1
truetrue/end MOD_PAR
truetrue/begin MOD_COMMON
truetrue    "Common definitions"
truetrue    BYTE_ORDER MSB_LAST
truetrue    ALIGNMENT_BYTE 1
truetrue    ALIGNMENT_WORD 2
truetrue    ALIGNMENT_LONG 4
truetrue    ALIGNMENT_FLOAT32_IEEE 4
truetrue    ALIGNMENT_FLOAT64_IEEE 8
truetrue/end MOD_COMMON

truetrue/begin MEASUREMENT VehicleModel.VehicelDynamicModel.Vehicle0.velocity
truetruetrue/* long identifier    */ ""
truetruetrue/* datatype           */ FLOAT32_IEEE
truetruetrue/* conversion         */ esdl_ident
truetruetrue/* resolution         */ 1
truetruetrue/* accuracy           */ 100.0
truetruetrue/* lower limit        */ -3.4028234663852886E+38
truetruetrue/* upper limit        */ 3.4028234663852886E+38
truetruetrueECU_ADDRESS 0x0
truetruetrue/begin IF_DATA E_TARGET
truetruetrue    KP_BLOB 0xFFFFFFFF 0xFFFFFFFF 4 1001 0 1001 0 1001 0 1000 0
truetruetrue/end IF_DATA
truetrue/end MEASUREMENT
